Dual Media Filter

  • Simple design maximizes reliability and efficiency
  • Two layers of filtration media
  • Filtration rating up to 10 – 30 Microns
  • Standard and effective quartz sand media.
  • Low Pressure drop across the vessel
  • FRP, MSRL, MSEP & SS Vessels are available.
  • Manual, Semi-Automatic and Automatic features are provided
  • Pre-assembled construction minimizes start-up time and installation costs
  • Structural steel legs provide rigid support of vessel for safety
  • Air scouring available for high flow pressure vessel.
  • Proven design of internal distribution and collection system

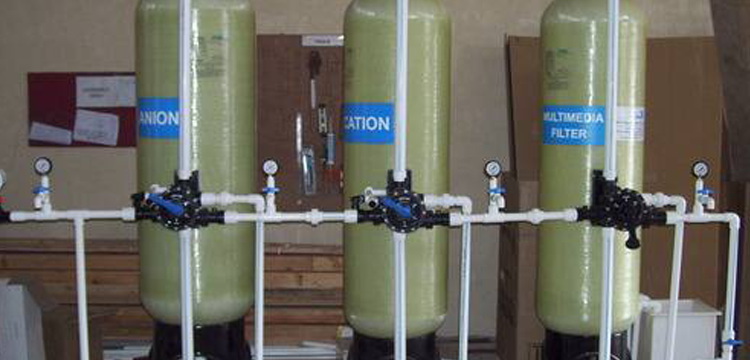

dual media filter

OVERVIEW

Dual Media Filter is used for removal of suspended solids, turbidity and some part of colour and odour from Water & Wastewater… We, at Rushi ION Exchange offer Series of filters at a low cost, reliable and highly efficient way to filter your water.
Our unique design of Dual Media filter ensures the maximum utilization of the surface area, lesser pressure drop across the filter bed and effective removal of the impurities even under the conditions of high filtration rate compare to pressure sand filter.
Rushi ION Exchange are available in diameters from 0.225 Mts. to 4.0 Mts.(vertically) and in length from 3.0 Mts. mm to 11 Mts. (Horizontally) with flow rates up to 400M3/Hr. These rugged, pre-engineered, pre-assembled units minimize installation and start-up costs. Whether you require ROfeed process water or filtered water, We can full fill applications requirement

WORKING PRINCIPLE

Raw water is passed through the dualmedia filter, contain anthracite along with fine sand reinforced by marbled and gravels. These filters consist of a coating of anthracite (1.25-2.5mm) resting on a coating of fine sand (0.6-1.5mm) Anthracite is coarse and has more dirt holding capacity as compared to fine sand.
During the filtration cycle the largest particles are strained out by the anthracite then the sand traps the rest of the particulate matter though a combination of adhesion and straining. Since the particles in the water are filtered out at various depths in a dual media filter, the filter does not clog as quickly as all of the particles were caught by the top layer.

TECHNICAL SPECIFICATION

Clear Pressure Drop0.3 bar

Flow 1M3/Hr. – 400 M3/Hr.
Inlet TSS Up to 50 Mg/L
Inlet Turbidity Up to 40 NTU
Filtration Velocity 12 to 18 M3/Hr./M2
Diameter (Vertical Vessel) 0.225 Mts. – 4.0 Mts.
Length (Horizontal Vessel) 3.00 Mts. – 11.0 Mts.
MOC FRP / Mid Steel / Stainless Steel Coating / lining : Epoxy / FRP / Rubber Lined
Filtration Rating Up to 10 Micron
Design Code ASME / IS
Design Pressure Up to 10 Bar
Working Pressure 1.1 to 3.5 Bar
Clear Pressure Drop 0.3 bar
Top distribution system bell mouth
Bottom distribution system Strainer plate or Header & laterals
