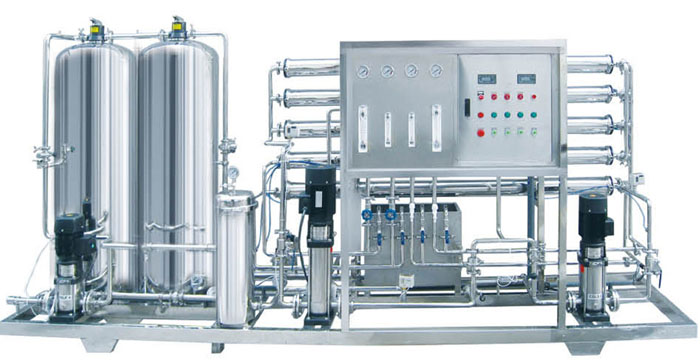

SS & FRP RO REVERSE OSMOSIS PLANT

Reverse Osmosis Plant is widely used for removal of dissolve chemical impurities from brackish & seawater. Reverse osmosis is the process of forcing a solvent from a region of high dissolve solids concentration through a membrane to a region of low dissolve solids concentration by applying a pressure in excess of the osmotic pressure.The semi permeable membranes used for reverse osmosis have a dense polymer barrier layer in which separation takes place. Our RO Plants are designed for a variety of industrial & commercial applications requiring high quality equipment with a fast delivery and competitive price. These pre-engineered, pre-assembled and factory tested units minimize installation and start-up time. With simple utility connections and easy to set up controls, the unit is ready for quick on-line service. The control system is an advanced microprocessor based system that is very easy to use. Our RO Plants are available in flowrates from 0.25 M3/hr. to 100 M3/hr. Using high quality 4 and 8 inch semipermeable membrane and equipment’s for variety of applications.

WORKING PRICIPLE

Reverse osmosis is water purification process in which pre-treated & filtered water is connected to the high-pressure pump where the pressure is developed and fed to the RO membranes. Reverse Osmosis membranes work on the Crossflow Filtration method where the salts get rejected partially and deliver pure water. Purified water is referred to as product and wastewater are referred to as concentrate or reject. The percentage of water delivered as a product is called the recovery. The ratio of recovery& output parameters depends upon the feed water quality, type of membrane, temperature and total RO unit design considerations.

TECHNICAL SPECIFICATIONS

Flow	0.25M3/Hr. – 50 M3/Hr.
Inlet TDS	Up to 10000 mg/L for brackish water up to 35000 mg/L for Sea Water
Outlet TDS	98% Rejection
Flux Rate	Varies from 15 LMH to 30 LMH
Temperature	25˚ Celsius
Type of Membranes	Energy efficient Polyamide
SDI	< 3 at inlet
Controls	Microprocessor / PLC
Flow Monitoring	Rota meter / digital flow meters.
Pre-filters	25˚ Celsius
Temperature	PP & SS with 5 Micron cartridges
High Pressure Pumps	Vertical inline SS 304 & 316
Pre Filter	Cartridge Filter of 5 Micron absolute
Membranes housing	FRP / SS
RO Skid	MSEP / SS

SS RO REVERSE OSMOSIS PLANT PRICE

250 LPH SS RO PLANT	PRICE: ₹1,35000 Approx.
500 LPH SS RO PLANT	PRICE: ₹1,76,000 Approx.
1000 LPH SS RO PLANT	PRICE: ₹2,98,000 Approx.
2000 LPH SS RO PLANT	PRICE: ₹4,25,000 Approx.
3000 LPH SS RO PLANT	PRICE: ₹4,85,000 Approx.
4000 LPH SS RO PLANT	PRICE: ₹5,45,000 Approx.
5000 LPH SS RO PLANT	PRICE: ₹6,30,000 Approx.
6000 LPH SS RO PLANT	PRICE: ₹6,80,000 Approx.
10,000 LPH SS RO PLANT	PRICE: ₹11,65,000 Approx.

FRP RO REVERSE OSMOSIS PLANT PRICE

250 LPH FRP RO PLANT	PRICE: ₹95,000 Approx.
500 LPH FRP RO PLANT	PRICE: ₹1,20,000 Approx.
1000 LPH FRP RO PLANT	PRICE: ₹1,80,000 Approx.
1500 LPH FRP RO PLANT	PRICE: ₹2,20,000 Approx.
2000 LPH FRP RO PLANT	PRICE: ₹2,70,000 Approx.
3000 LPH FRP RO PLANT	PRICE: ₹3,70,000 Approx.
4000 LPH FRP RO PLANT	PRICE: ₹4,20,000 Approx.
5000 LPH FRP RO PLANT	PRICE: ₹4,70,000 Approx.
6000 LPH FRP RO PLANT	PRICE: ₹5,55,000 Approx.
8000 LPH FRP RO PLANT	PRICE: ₹7,55,000 Approx.
10,000 LPH FRP RO PLANT	PRICE: ₹9,15,000 Approx.

Call Or Visit Us For The Best Negotiable Deal.
