MINERAL WATER PLANT PROCESS

  • Simple design maximizes reliability and efficiency
  • Single layer of activated Carbon
  • Adsorption efficiency up to 85 to 90 %
  • Low Pressure drop across the vessel
  • FRP, MSRL, MSEP & SS Vessels are available.
  • Manual, Semi-Automatic and Automatic features are provided
  • Pre-assembled construction minimizes start-up time and installation costs
  • Structural steel legs provide rigid support of vessel for safety
  • Air scouring available for high flow pressure vessel.
  • Proven design of internal distribution and collection system.

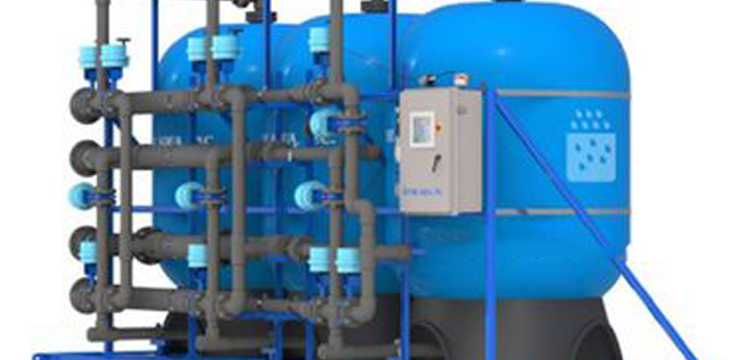

carbon filter Manufacturer in Ahmedabad

OVERVIEW

Activated Carbon Filter is used to adsorb chlorine, organics, tri-halo-methane (THM), taste, odour, and colour from Water & Wastewater. Activated carbon is a charcoal that has been treated with oxygen to open up millions of tiny pores between the carbon atoms. The activated carbon has a massive surface area (2000 – 3000 square metres per gram of activated carbon) making it highly effective at adsorbing impurities from water. We, at Rushi Ion Exchange, offer Series of filters at a low cost, reliable and highly efficient way to purify your water.

Our unique design of Activated Carbon Filter ensures the maximum utilization of the activated carbon surface area with effective contact time and actual removal of the impurities. Our ACFs are available in diameters from 0.225 Mts. to 4.0 Mts. (vertically) and in length from 3.0 Mts. mm to 11 Mts. (Horizontally) with flow rates up to 400M3/Hr. These rugged, pre-engineered, pre-assembled units minimize installation and start-up costs. Whether you require chlorine-free water for RO feed, or colour & odour free wastewater, We can full fill applications requirement.

WORKING PRINCIPLE

Activated carbon filtration is an adsorptive process in which the contaminant is attracted to and adsorbed onto the surface of the carbon particles. The efficiency of the adsorption process is influenced by carbon characteristics (particle and pore size, surface area, density and hardness) and the contaminant characteristics.

TECHNICAL SPECIFICATION

Clear Pressure Drop0.3 bar

Flow 1M3/Hr. – 400 M3/Hr.
Filtration Velocity 12 to 18 M3/Hr./M2
EBCT** 2 to 30 Minutes
Diameter (Vertical Vessel) 0.225 Mts. – 4.0 Mts.
Length (Horizontal Vessel) 3.00 Mts. – 11.0 Mts.
MOC FRP / Mid Steel / Stainless Steel Coating / lining : Epoxy / FRP / Rubber Lined
Chlorine , Colour , Odour removal 85 – 90 %
Design Code ASME / IS
Design Pressure Up to 10 Bar
Working Pressure 1.1 to 3.5 Bar
Clear Pressure Drop 0.3 bar
Top distribution system bell mouth
Bottom distribution system Strainer plate or Header & laterals.
** EBCT Effective Bed Contact time
