FEATURES & BENEFITS

Low-pressure drop
High dirt holding capacity
Zero hold up design available on demand
Permanently piped housing is opened without special tools and without disturbing the piping
Easy to clean in case of cleanable filter
In-line inlet and outlet high flow rates
Positive sealing arrangement to avoid bypassing
Suitable for double open end (DOE), Code 7 (226 O- Ring) & 222 O-Ring type filter cartridge
Accommodates 10″, 20″, 30″, 40″, 50″ & 60″ long filter cartridges.
End connections of¼” to 24″ pipe
V posts or threaded center posts
Quick opening tri clovers design available on demand
Easy to operate & low maintenance
Flow rate up to 2000 m3 /hr & more
Customized design available
Housings are permanently piped
All housings made from SS 316 L, SS 316 & SS 304 are mirror polished & electro polished to
resist adhesion of dirt and scale
Carbon steel housings are sandblasted, epoxy coated & finally painted with two coats of
synthetic enamel
ASME code stamp & PED certified filters are available
High temperature & high pressure designs are available

SPECIAL OPTIONS

Sanitary fittings and construction
High pressure rating
Housings made of alloy steel
Steam jackets, Insulation
Special outlet locations
Optional cartridge sealing methods for 226, NPT, etc

Single bag filter system suitable for

No. To 500 Nos. Of Cartridges in Single Housing
2″, 2.5″, 4″, 6″ & 8″ Diameter of Cartridge
10″, 20″, 30″, 40″, 50″ & 60″ Length of cartridge

MATERIAL OF CONSTRUCTION

ss 316L, ss 316, ss 304, CARBON STEEL
(ALL-GRADE), MILD STEEL, ALLOY METALS
Super Duplex, Duplex stainless steel
2205
POLYPROPYLENE• LEAD LINING on any
metal
RUBBER LINING on any metal
TEFLON LINING on any metal
TEFLON coating on any metal
Glass Flake Coating

CARTRIDGE FILTER HOUSING SUITABLE FOR

Double Open End (DOE) Type
Code 7 (226 0 Ring) Design
Code 3 (222 0 Ring) Design
NPT Threaded Connection Type

GASKET/0 RING MATERIAL

Neoprene, Spiral Wound, Nitrile, CAF
Silicone, Viton, Buna N, PDM
PTFE

CARTRIDGE FILTER SYSTEM

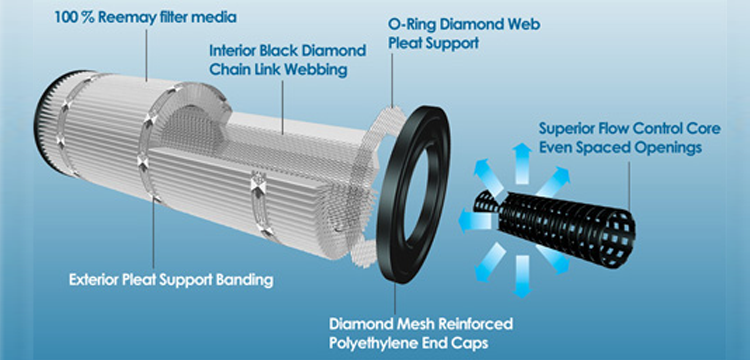

Cartridge filter system offers wide range of flow capicities & contaminant holding capacities. Cartridge filter housing diameters can accommodate arround 1 to 500 Nos. of cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connection. Positive sealing arrangement for cartridge filter assures no particle migration of fiber migration, even after high differential pressures.

OPERATION

Contaminated fluid enters the housing and is distributed evenly around the filter cartridges. Filtration takes place from outside to inside. Solids are collected on the outside of filter cartridges & clear filtrate is collected at outlet.
